Maximum Power Per Channel : NO POWER
Package : Yes
Channels : 2 (2.0)
Certification : NONE
Model Number : V6
Description

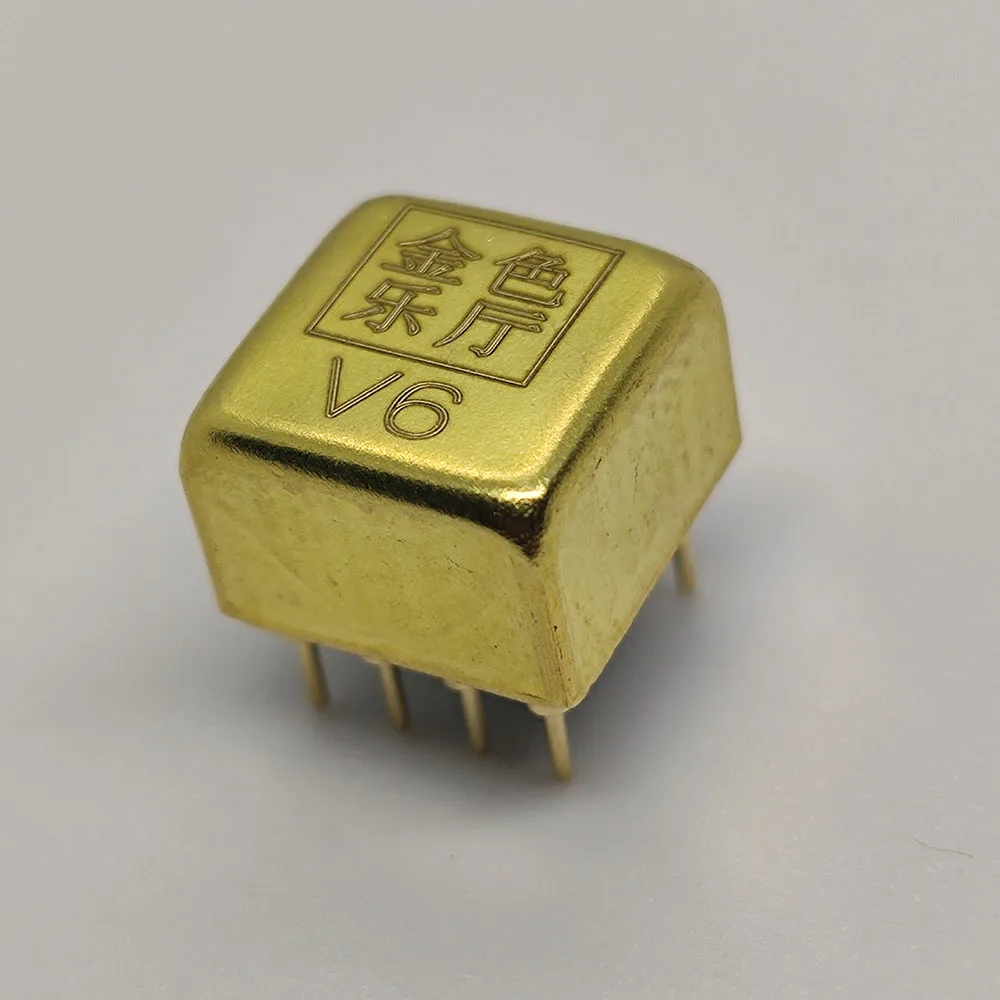

The V6 dual op amp is a member of a dedicated op amp and is a state-of-the-art flagship dual op amp. Suitable for hifi fans to improve sound quality in one step, upgradeable to replace v5, V4, AMP9922AT, AMP9920AT, MUSES02, MUSES01, AD827, SS3602, OPA2604, NE5532, LME49720, etc. The v6 sound is warm and hydrated, and the tri-band is smooth and compliant. The background sounds very quiet and ear, the sound quality Q is very high and emotional, its details Dynamics can also be accurately expressed, the air is excellent, the sound is very clean, transparent and sweet.
Indicator characteristics
●Amplifier type: audio dedicated
●Amplifier channel number: Dual op amp
● Conversion rate: 9V/μs
● Bandwidth: 18MHz
●Low noise: 2.5nV/HZ at 1KHZ
●Low distortion: 0.00003% at 1KHZ
● Current-Input Bias: 450nA
● Voltage-Input Offset: 290μV
●Rated voltage: ±3-- ±16V
● Working temperature: -40 °C - 85C
●Installation type: inline
Package: Dual in-line module (for replaceable standard inline DIP8 package)
This is a new version, and the original kind of only the shape has changed, the same universal, the effect is the same
